Vibration Machine

This vibrating screen machine is first machine of PTFE Tape Production Line,  which specifically engineered for PTFE (Polytetrafluoroethylene) powder processing, utilizing high-frequency vibration and multi-layer screening to effectively break up material agglomerations and remove impurities, ensuring uniform dispersion of particles. Featuring a fully enclosed stainless-steel chamber and food-grade mesh, it prevents cross-contamination. Equipped with an intelligent vibration adjustment system, the machine automatically optimizes vibration frequency (800-3000 cycles/min) based on material moisture and particle size, significantly enhancing the homogeneity of subsequent additive blending. By replacing manual screening with automated operation, it achieves a throughput of 100-300kg/h, reducing labor costs by over 50% and eliminating quality defects (e.g., uneven mixing, reduced product strength) caused by agglomerates. Ideal for high-end PTFE product manufacturing, such as advanced sealing materials and specialty coatings.

Key Advantages & Features

  1. Agglomeration Elimination – 3D vibration + elastic beating mechanism achieves ≥99% deagglomeration rate
  2. Friendly Control – Switch for real-time monitoring of vibration intensity and mesh status
  3. Contamination-Free – 304 stainless steel construction
  4. Energy Efficiency – Low-power motor (1.5-5.5kW) reduces energy consumption by 40% vs conventional screens

Mixer Machine

Mixer machine is an advanced piece of equipment designed for the efficient blending of PTFE  raw materials and processing additives. This machine features a three-dimensional rolling motion, which ensures thorough mixing and uniformity of the blended substances.

Key functionalities include:

Three-Dimensional Rolling: The mixer employs a unique three-dimensional rolling mechanism that enhances the mixing process by allowing materials to move in multiple directions, promoting better contact and interaction between the PTFE and additives.

Time Control System: Equipped with a precise time control system, the mixer allows for accurate timing of the mixing process. Operators can easily adjust the mixing duration to achieve the desired level of homogenization, ensuring quality and consistency in the final product.

Slow Rotation for Gentle Mixing: The machine operates at a slow rotation speed, which minimizes the risk of damaging the materials while still achieving efficient blending. This gentle mixing process is particularly important for delicate additives that can be affected by high shear forces.

Homogenization of Two Mixtures: Designed to effectively homogenize two different substances, this mixer is ideal for applications requiring the integration of PTFE with various processing additives, leading to improved material properties and performance.

In summary, the PTFE Material and Processing Additive Mixer is a specialized tool that enhances the preparation of PTFE composites by ensuring that raw materials and additives are thoroughly and gently mixed, meeting the high standards required in various industrial applications.

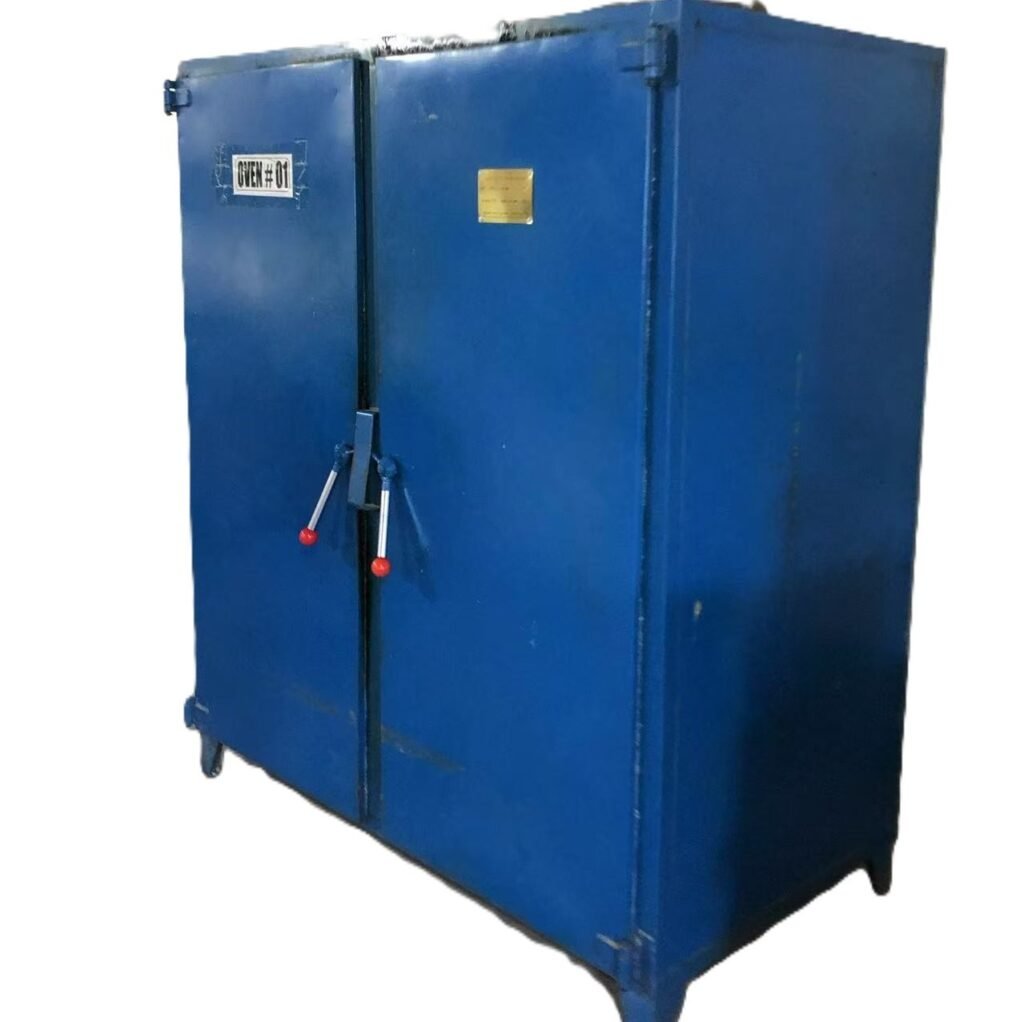

Heating Oven

This oven is specifically designed for the thermal conditioning process in PTFE  tape manufacturing, enabling static softening of resin-additive mixtures. Featuring a double-layer steel structure with interlayer thermal insulation cotton, it reduces heat loss by 35% compared to conventional ovens. Equipped with bottom resistive heating and a PID temperature control system, it maintains a precise internal temperature of 55±1°C, supported by multi-point temperature probes and an external digital display for 8+ hours of stable operation.

The modular stainless-steel cartridge rack allows pre-loaded sealed material containers (5-20kg/cartridge) to be readily accessed without frequent door opening, minimizing temperature fluctuations and contamination. Ideal for processing PTFE tapes and expanded sealing materials requiring prolonged low-temperature conditioning, it ensures uniform additive absorption and consistent product tensile strength.

Key Features & Advantages

  1. Precision Temperature Control – PID algorithm + multi-zone sensing (variation <±1°C)
  2. Energy Efficiency – Double-wall insulation reduces heating power to 2.5-7.5kW (customizable)
  3. Contamination Prevention – 304 stainless-steel chamber + sealed cartridges (food-grade compliant)
  4. Smart Safety – Over-temperature alarm, power-failure memory, and auto-shutdown timer.

Pressing Machine /PTFE Tape Extrusion Machine

The PTFE Hydraulic Pressing Machine is a high-performance machine specifically designed for compressing pre-baked raw materials into a desired shape. Utilizing a two-step extrusion process, this machine ensures precise and efficient production, making it ideal for industrial applications requiring high-quality PTFE products. It is key one of thread seal tape making machines.

Key features include:

Two-Step Extrusion Process:

  • Pre-Extrusion: The raw material is pre-compressed to form a compact structure.
  • Final Extrusion: The material is then extruded into a rope-like shape, which is stored in an insulated container to maintain its properties.

Constant Pressure Control:
By adjusting the oil flow through a regulating valve, the press achieves a stable and constant extrusion pressure. This ensures uniformity and reliability in the final product.

Variable Plunger Speed:
The plunger’s descent speed is intelligently adjusted throughout the process:

  • At the start, the plunger moves faster as the raw material contains a higher amount of extrusion aid, reducing resistance.
  • As the extrusion aid is depleted and the material hardens, the resistance increases, causing the plunger speed to decrease naturally.

User-Friendly Operation:
The press is easy to operate, with minimal manual intervention required. The constant pressure mechanism and variable plunger speed ensure smooth and consistent performance.

Continuous Production Capability:
Designed for industrial-scale production, the machine supports continuous operation, improving efficiency and productivity.

Automatic Stop Function:
Equipped with some limit switches, the press automatically halts when the pre-set limit is reached, enhancing safety and minimizing waste.

In summary, the PTFE Hydraulic Pressing machine is an advanced, efficient, and highly reliable machine designed for the precise extrusion of PTFE materials. Its constant pressure control, intelligent plunger adjustment, and user-friendly features make it an essential tool for industries requiring continuous and consistent extrusion performance.

Canlender Machine

Calender machine are mostly two-roll calenders, where the two rolls rotate at the same speed but in opposite directions, causing the material to be compressed and thinned without generating shear stress. The key technical parameters of the calender include roll diameter, roundness, width, adjustable roll gap range, variable speed range, and heating method.

The surface of the rolls must be smooth and chrome-plated, polished to a mirror-like finish. The roll diameter should be no less than 30 cm. The heating methods can include hot water, steam, electric heating, or infrared heating. The lower roll of the calender is usually fixed, and to ensure uniform thickness of the raw material sheet, the surface of the lower roll is typically machined into an arc shape with an edge thickness error of approximately 3%.

The upper roll is adjusted by a pressing mechanism that moves it up and down to regulate the roll gap. The rolls are supported by ball bearings to ensure stable and efficient operation.

The width of calendered film is not only related to the diameter and width of the parison and the width of the calender roll, but more importantly, it is also related to the diameter of the calender roll. The larger the width of the calender roll, the larger the diameter of the calender roll is required. If you need to calender 200mm wide film, you need to calender in the diameter of 150mm, the width of 300mm calender rollers for calendering. Calendering roller barrel can be heated by 50 ~ 80 ℃ hot water to facilitate calendering, calendering roller speed can be taken 1.5 ~ 4.0 m / min. Appropriate increase in calendering roller speed and temperature, can expand a little calendering film width. The thinnest thickness of calendering film is 50um.

De-oiling Machine

This de-oiling machine is engineered for kerosene recovery in PTFE tape manufacturing. Featuring a double-layer insulated structure (with fiber thermal insulation) and dual-mode heating (infrared/resistance wire), it rapidly heats to target temperatures with ±2°C stability. Equipped with wear-resistant stainless steel or electroplated cast iron rollers, its fully synchronized dual-roll operation increases efficiency by 40% compared to single-roll systems. Multi-point temperature monitoring and dedicated controllers ensure process consistency, while modular components simplify maintenance. Ideal for oil-impregnated material processing in PTFE tapes and sealing products.

Integrated with an independent fan and chiller unit, it achieves 60-70% kerosene recovery (at 20-35°C ambient) through vapor condensation technology.

Key Advantages

  1. High-Efficiency Recovery – Condensation system + directional airflow maximizes kerosene recovery (if required kerosene recycling)
  2. Energy-Saving Heating – Double-layer insulation cuts thermal loss by 30% with adaptive power adjustment
  3. Dual-Roll Synergy – Doubled capacity without extra energy consumption
  4. Corrosion Resistance – 316L SS or hard-chrome-plated rollers (>10,000-hour lifespan)
  5. Smart Monitoring – 5-zone temperature sensing + alarm system prevents overheating/clogging

De-oiling & Streching Machine

This integrated machine combines de-oiling and stretching processes for polymer products like PTFE tapes and expanded seals, significantly reducing equipment costs and factory footprint. Operating in a “de-oiling to stretching” continuous workflow, it employs double-layer insulated infrared heating and servo-controlled tension stretching (<1% thickness variation), eliminating manual material transfer and boosting productivity by 50%.

The built-in temperature synchronization system ensures optimal thermal transition between de-oiling and stretching zones, preventing material re-hardening. Modular design allows independent maintenance, reducing downtime. Ideal for SMEs upgrading production lines or seeking highly automated solutions.

Key Advantage

  1. Cost Efficiency – 40% lower cost & 30% energy saving vs separate machines
  2. Seamless Workflow – Continuous de-oiling to stretching cuts production time by 40%
  3. Process Synergy – Intelligent parameter linkage prevents material degradation
  4. Adaptive Design – Adjustable roller spacing for 0.1-5mm thick materials
  5. Eco-Friendly** – Closed-loop recovery + exhaust filtration (EPA compliant)

De-oiling & Streching & Slitting Machine

This fully integrated machine is designed to produce PTFE tapes, combining three critical processes: de-oiling purification, precision stretching, and high-speed slitting. Featuring modular design, it seamlessly integrates oil removal treatment, tension-controlled stretching, and precision slitting/rewinding into a single automated workflow, significantly reducing material waste and time costs associated with traditional multi-machine operations. Equipped with intelligent temperature-controlled de-oiling systems, servo-synchronized stretching technology, and digital slitting controls, it guarantees tape thickness uniformity (±0.01mm), slitting accuracy (±0.1mm), and surface cleanliness.

Key Functions & Advantages

  1. Triple-Process Integration – Continuous de-oiling, stretching, and slitting minimizes handling and contamination
  2. Smart De-oiling – Temperature-controlled solvent cycling + air fan absorption, residual oil ≤1%
  3. Stretching Precision – Multi-stage tension control, thickness variation <1%, stretching ratio controlled by inverter speed.

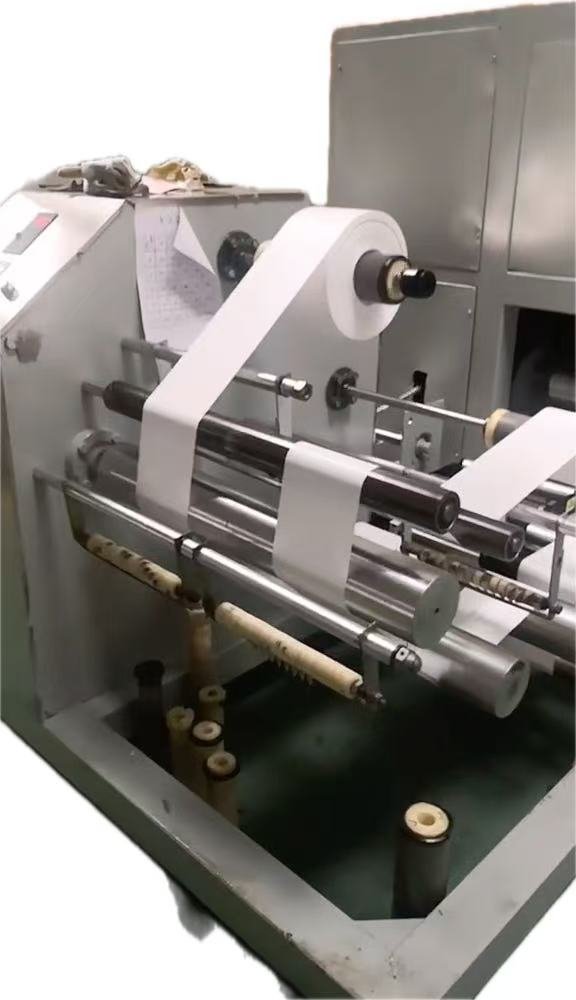

Streching & Slitting Machine

Designed for continuous PTFE tape production, this machine integrates stretching and precision slitting, forming a complete “de-oiling→stretching→slitting” line when paired with a de-oiling machine. Its synchronized “stretching-alignment-slitting” control system ensures uniform material elongation (thickness variation <±0.05mm) via servo motors and roller temperature compensation. The slitting module employs PLC for online cutting (5-25mm width, ±0.1mm accuracy).

This advanced 2-in-1 stretching and slitting machine is engineered for high-volume PTFE  tape production, seamlessly integrating with de-oiling systems to form a complete automated line. Equipped with a Siemens/Mitsubishi PLC and 10.1-inch HMI touchscreen, it enables dual-roll synchronous processing (two rolls working simultaneously), doubling productivity while maintaining precision.

Key Features & Advantage

  1. Dual-Roll Parallel Operation
  • Two independent material rolls processed simultaneously via synchronized servo drives
  • Auto-loading/unloading system with pneumatic clamps reduces manual intervention.
  1. PLC-Controlled Precision
  • Real-time parameter adjustment: Stretching ratio (1:2 to 1:6), tension (10-200N), and slitting width 5-25mm) preset through HMI.

3.High Automation

  • Auto-diameter detection: Servo-driven rewinding adjusts torque based on roll diameter
  • Tool-less blade change: Quick-release mechanism for slitting blades
  • Fault self-diagnosis: Vibration sensors and thermal cameras monitor motor/gear status, triggering alarms for overload or misalignment.

4.Energy-Optimized Design

  • Regenerative braking system feeds excess energy back to the grid, reducing power consumption by 22%.
  • Insulated heating rollers with PID control minimize heat loss.

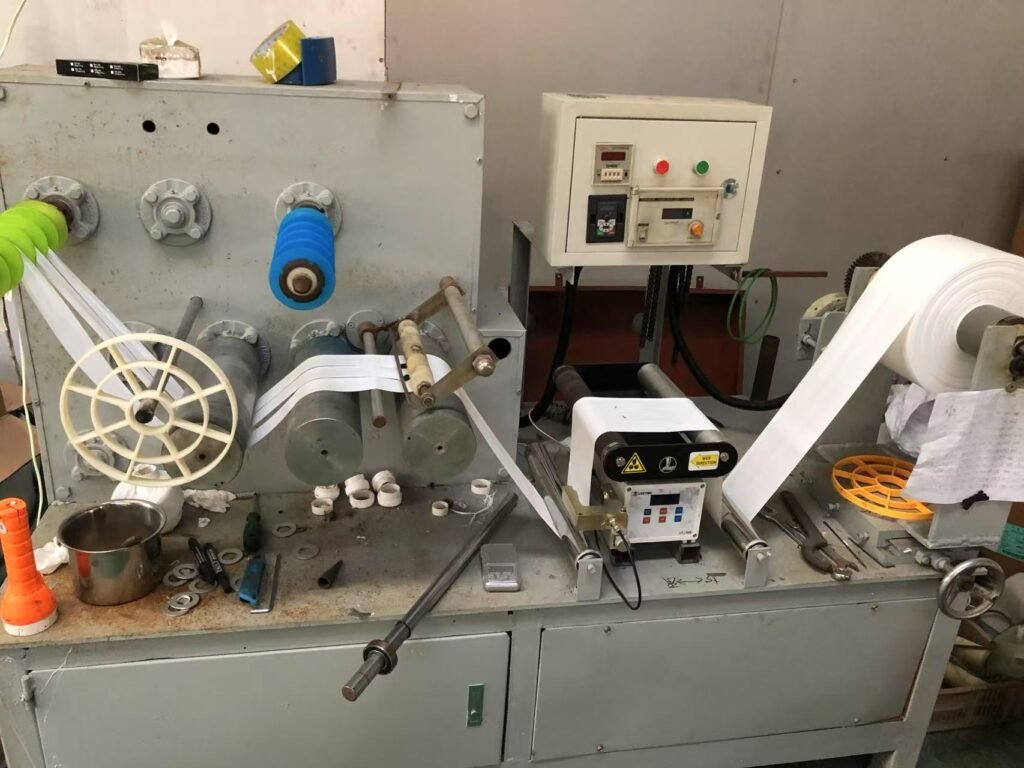

Slitting & Rewinding Machine

This integrated machine combines slitting and rewinding processes for PTFE tapes and expanded seals, significantly reducing equipment costs and factory footprint. Operating in a “slitting to rewinding” continuous workflow, it employs double-station insulated servo-controlled tension stretching (<1% thickness variation).

The built-in speed synchronization system ensures optimal thermal transition between slitting and rewinding zones, preventing tapes loosing. Modular design allows independent maintenance, reducing downtime. Ideal for SMEs upgrading production lines or seeking highly automated solutions.

Key Advantage

  1. Cost Efficiency – 30% lower Cost & 20% energy saving vs separate machines
  2. Seamless Workflow – Continuous slitting to rewinding cuts production time by 30%
  3. Adaptive Design – Adjustable roller spacing for 9-25mm width tapes
  4. Eco-Friendly – Closed-loop recovery

Automatic Slitting & Rewinding Machine

As an innovative patented product (Patent No.: ZL2015XXXXXXX.X), this fully automatic machine is engineered for high-efficiency slitting and precision rewinding of PTFE tapes. It revolutionizes traditional standalone slitting/rewinding operations with proprietary “Synchronous Slitting-Dynamic Alignment-Tension Coupling” technology, enabling integrated continuous production. The patented dual-axis control system dynamically adjusts blade spacing and rewinding tension in real time, achieving burr-free slit strips (minimum 5mm width) with zero elongation deformation and ±0.1mm rewinding flatness.

Patented Core Technologies

  1. Synchronous Slitting-Rewinding Mechanism (Patented) – Intelligent linkage between blades and rewinding shafts eliminates inter-process tension spikes
  2. Dynamic Radial Alignment System (Patented) – Air-floating + limited switch positioning with ±0.05mm lateral compensation
  3.  Energy-Saving Architecture – Power regeneration between slitting/rewinding modules cuts energy use by 25%

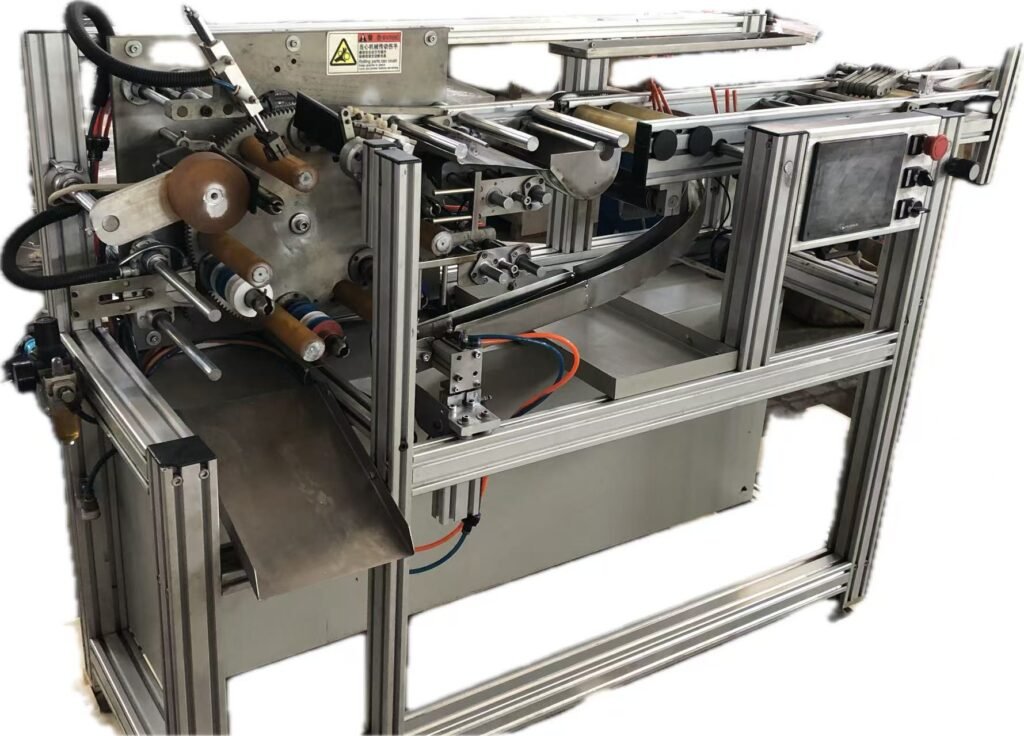

Automatic Rewinding Machine

The Fully Automatic PTFE Tape Rewinding Machine is a high-efficiency, intelligent industrial equipment specifically designed for rewinding PTFE tapes. Integrated with automated unwinding, tension control, edge alignment correction, length-based cutting, and rewinding functions, this machine adopts a PLC control system and a touchscreen HMI (Human-Machine Interface) to achieve fully automated production processes. Equipped with high-precision servo motors and sensors, it ensures stable material tension and precise edge alignment, significantly improving product quality and production efficiency. Suitable for slitting and rewinding applications in packaging, electronics, construction materials, and other industries, it offers user-friendly operation, energy-saving features, and low maintenance costs.

Key Features

  1. End-to-End Automation – Hands-free operation from unwinding to rewinding
  2. Smart Control – Real-time parameter adjustment via PLC and touchscreen
  3. Precision Engineering – ±0.2mm edge alignment accuracy, <5% tension variation
  4. Multi-Material Compatibility – Handles widths from 5-25mm tapes
  5. Energy Efficiency – 30% lower power consumption vs conventional machines

Plastic Reel Printer Machine

This machine is designed for high-efficiency surface printing on PTFE tape plastic cores/reels. Equipped with a 3-station synchronous printing system, it completes logos, text, or QR codes on 3 cores/reels per cycle (multi-color registration supported). The automated spiral vibratory feeder aligns and transfers cores to printing stations via guided tracks, paired with vision alignment (±0.05mm) for positional accuracy.

Key Advantages & Feature

  1. Triple-Station Sync Printing – 3 independently controlled print heads boost efficiency by 300%
  2. Spiral Smart Feeding – Vibratory bowl + helical guider adapt to irregular/curved cores
  3. Zero-Defect Alignment – Dual verification via industrial camera + IR sensors (misalignment <0.1%)
  4. Uninterrupted Operation – Sealed ink circulation ensures 72-hour clog-free printing

Plastic Cover Printer Machine

This machine is engineered for high-precision curved surface printing on cylindrical/irregular PTFE tape shells (Φ10-40mm). Utilizing dynamic multi-axis synchronization technology, it prints 1 shell per cycle (multi-color on curved/concave surfaces) with a service motor system compensating for curvature deviations (±0.1mm). The rotating fixtures and 6-axis robotic arm ensure flawless printing of complex patterns (e.g., threaded logos, annular QR codes).

Equipped with constant-pressure inking and flexible silicone pads, paired with UV-LED curing (365-405nm optional), it achieves 400-800 pcs/hour. Fully automated spiral feeding, conveyor output, and defect rejection modules enable 24/7 production.

Key Advantages & Feature

  1. Curvature Adaptation – 6-axis robot + 3D vision ensures ≥5% print coverage
  2. Flexible Printing – Silicone pads (20-80 Shore A) fit recessed/hollow shells
  3. Durable Inks – UV/solvent/water-based options (5B adhesion per ASTM D3359)
  4. Smart Feeding – Spiral bowl + pneumatic sorting handle mixed shell sizes
  5. Non-Contact Handling – Vacuum suction + belt drive prevents surface scratches

Film Packing Machine

This machine is designed for final packaging of PTFE tape products (rolls/boxes), offering two modes:

  1. Fully Automatic Single Packing: Servo-driven film feeding, auto-sleeving, L-sealing, and heat shrinking processes achieve 30-60 packs/min for standardized products.
  2. Semi-Auto Bundle Packing: Operators manually sleeve pre-stacked 10-unit bundles, which are then conveyed for heat shrinking (50-150℃ adjustable) with 95% uniformity, ensuring tight bundle appearance.

Featuring modular construction, dual-channel hot air circulation (independent upper/lower zones), and photoelectric alignment, it handles PVC/POF/PE films (15-50μm).

Key Advantages

  1. Dual-Mode Flexibility – One-touch switching with preset parameters
  2. Precision Heating – PID + multi-point IR sensors (ΔT≤±2℃)
  3. Energy Saving – Waste heat recovery cuts energy use by 25%
  4. Cobots Safe – Safety curtains & E-stop at manual station (ISO 10218 compliant)
